>> COMING SOON

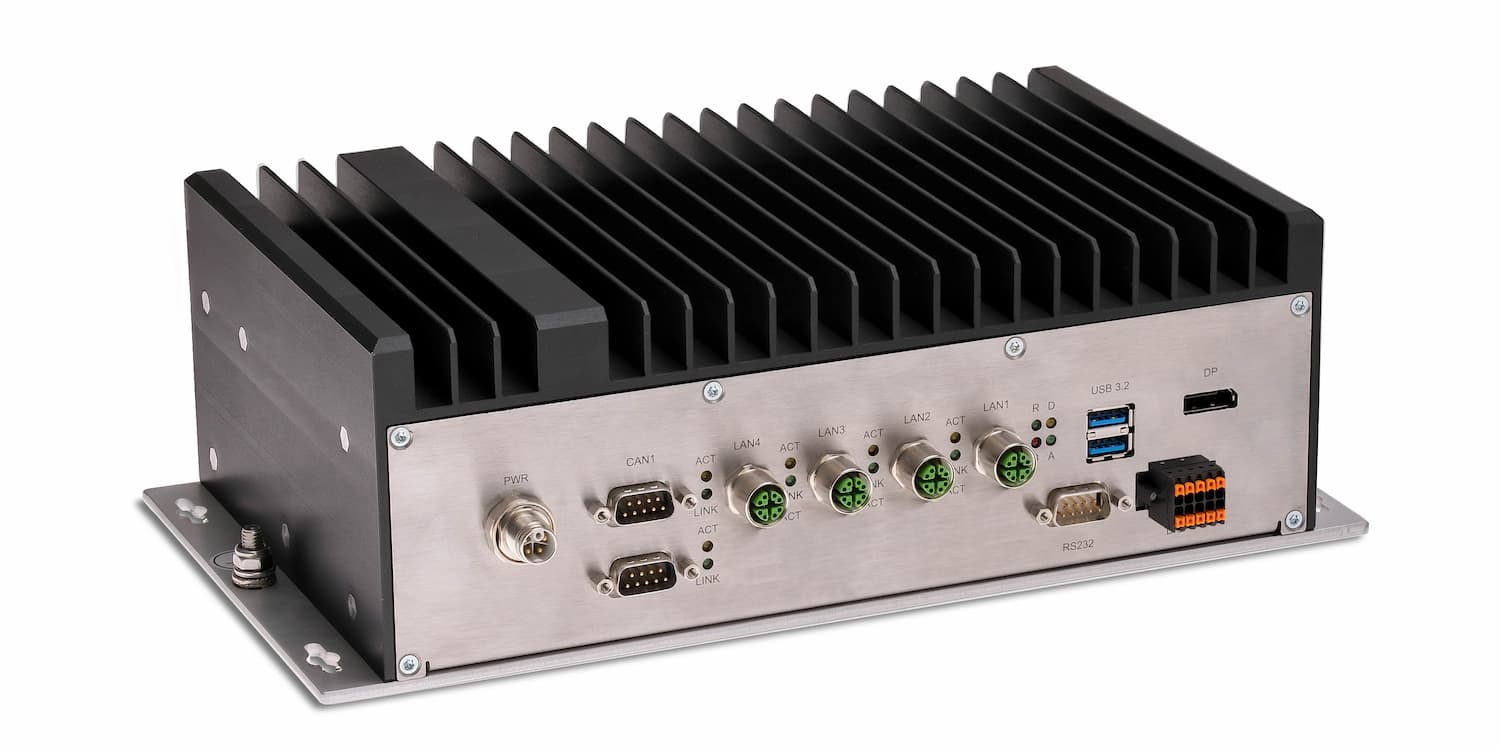

The Railway Computer RML-R10 is based on the 13th generation of Intel Core i processors (Raptor Lake). The Railway Computer RML-R10 complies with the EN50155, class OT4 and EN45545-2 standards. In addition, the robust box PC offers a power failure bridging time of at least 10 milliseconds in accordance with EN50155, Class S2, as well as full 50155 compliance with regard to shock and vibration (EN61373), EMC (electromagnetic compatibility) and electrical insulation requirements.

The RML-R10 has a galvanically isolated power supply input. In addition, it can be configured, including the ignition controller, via wide-range inputs for DC voltage between 16.8 and 137,5 volts.

For positioning and data transmission, the railway computers can be equipped with GPS and LTE/GSM/UMTS functions. Connection to typical railway BUS systems such as Real-Time Ethernet, TCN, WTB, ProfiNET or MVB is via optional expansion cards that can be easily integrated.

Customize product

All products

Downloads

Documents

Datasheet

Product manual

CE declaration ofconformity

Software

Drawings + 3D files

Mechanical Drawing(PDF)

3D file (STP)

Compare Products

IPC/RML10L70-C101E
IPC/RML10L70-R101E
Processor
Intel® Core™ i7-1370PRE P-Series
Intel® Core™ i7-1370PRE P-Series
Memory / RAM
64GB RAM
CFast socket
64GB RAM
CFast socket
Storage
1TB NVMe M.2 SSD
1TB NVMe M.2 SSD
Display out
1x Displayport 1.4a
1x Displayport 1.4a
USB
2x USB 3.1 Type-A
2x USB 2.0 Type-A (behind rear cover)
2x USB 3.1 Type-A
2x USB 2.0 Type-A (behind rear cover)
Networking
4x 10/100/1000BASE-T
4x 10/100/1000BASE-T
GMSL Camera Input
-
-
CAN
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
Serial
1x RS232
1x RS422 (on request)
1x RS485 (on request)
1x RS232
1x RS422 (on request)
1x RS485 (on request)
Digital I/O
4 inputs / 4 outputs (configurable)
Analog In/Out (on request)
4 inputs / 4 outputs (configurable)
Analog In/Out (on request)
Wireless
-
5G LTE w/GNSS, RTK & Dead Reckoning
Wi-Fi ax/ac/a/b/g/n/ & Bluetooth
Expansion slots
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M)
1x mPCIe
1x microSD
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M)
1x mPCIe
1x microSD
Power Input
isolated 16.8-137.5V DC
isolated 16.8-137.5V DC
Protection class
IP40
IP40
Dimensions
w314 x h94 x d170mm
w314 x h94 x d170mm
Weight
3.2 kg
3.25 kg
Op. Temp. range
-40°C to +70°C
-40°C to +70°C
