GMSL Camera Overview

Syslogic's embedded systems, integrating seamlessly with mono and stereo cameras, provide a robust foundation for advanced computer vision and inference applications. The industrial computers offer up to eight GMSL2 camera inputs. Powered by NVIDIA Jetson, these systems can simultaneously process data from multiple synchronized high-resolution cameras in near real-time.

The market offers a wide range of mono and stereo cameras. Syslogic has partnered with several camera manufacturers who share our high standards of quality and robustness. Compare the features of the supported cameras in the table below to find the ideal match for your application.

Clear filters
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Sensor
Resolution, Framerate
Output Format
Dynamic Range
Shutter Type
LFM Capability
FOV
Operating Temperature
IP Rating
e-Con Systems
STURDeCAM31
Sony ISX031
3MP @ 60fps
Uncompressed UYVY
120 dB
Rolling
Yes

54.04°(H), 42.86°(V), 70.17°(D)
128.7°(H), 98.7°(V), 170.1°(D)

-40°C to 85°C
IP69K
e-Con Systems
STURDeCAM21
AR0233AT
FullHD @ 30fps
Uncompressed UYVY
120 dB
Rolling
Yes

113.83°(D), 98.22°(H), 50.34°(V)

-40°C to 85°C
IP67
e-Con Systems
STURDeCAM25
AR0234CS
FullHD @ 65fps
Uncompressed UYVY
71.4 dB
Global
No

128.2°(D), 104.6°(H), 61.6°(V)

-30°C to 70°C
IP67

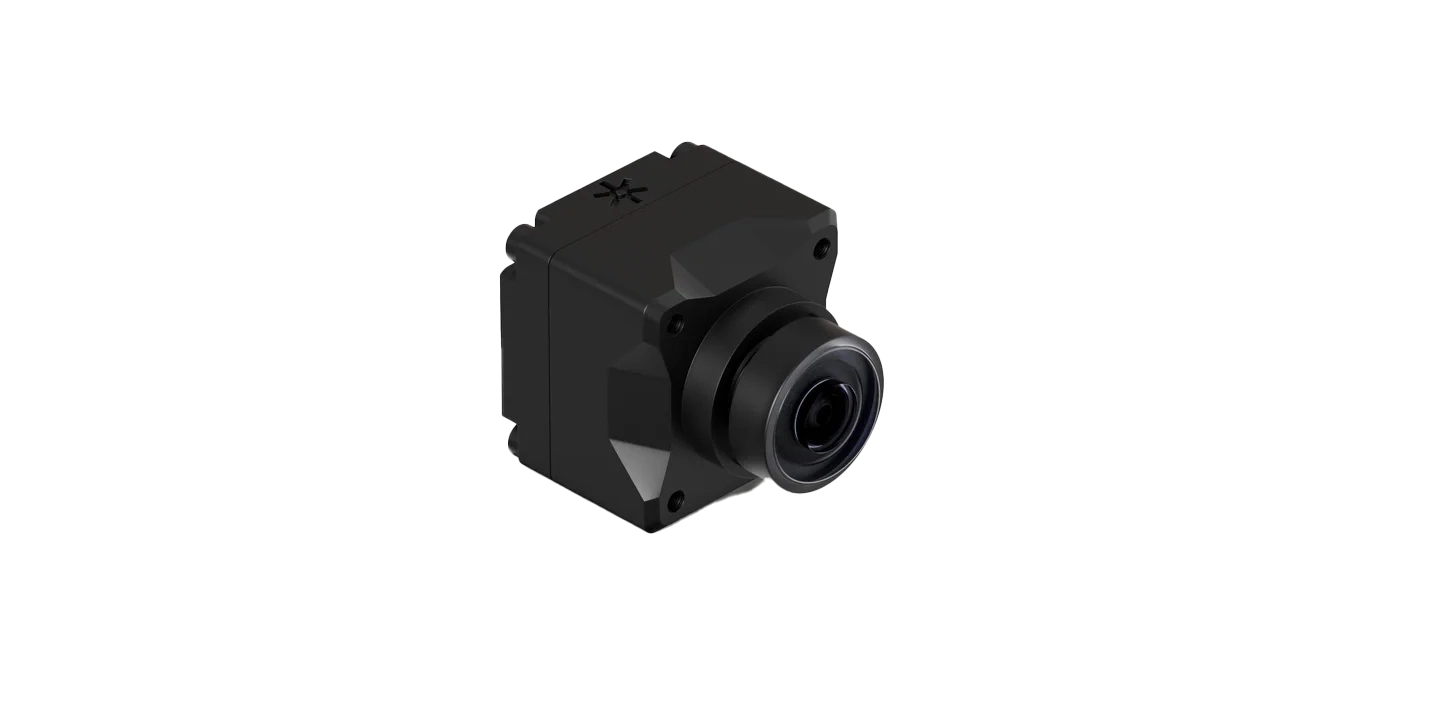

Stereolabs
ZED X One GS
AR0234
1920 x 1200 @ 60fps
RAW10(v4l2) / NV21 (Argus)
71.4 dB
Global
No

91°(D)
80°(H)
52°(V)

120.8°(D)
110°(H)
79.6°(V)

-20°C to +55°C
none
Stereolabs
ZED X One
IMX678
3840 x 2160 @ 15 fps
RAW10 (v4l2) / NV21 (Argus)
85 dB
Rolling
No

118.8°(D) x 109.9°(H) x 71.8°(V)

-20°C to +55°C
none
Stereolabs
ZED X / Mini (Stereo)
2x AR0234
2x 1200p @ 60fps
RAW10(v4l2) / NV21 (Argus)
71.4 dB
Global
No

110 (H) x 80 (V) x 120° (D)

80 (H) x 52 (V) x 91° (D)

-20°C to +55°C
IP67
D3 Embedded
DesignCore Discovery PRO (IMX390)
IMX390
1920 x 1080 @ 30 fps
Bayer RGB Stream
HDR
Rolling
Yes

65° - 180° (H)

-40°C to 85°C
IP67
D3 Embedded
DesignCore Discovery PRO (ISX031)
ISX031
1920 x 1440 @ 30 fps
Bayer RGB Stream
120 dB
Rolling
Yes

65° - 180° (H)

-40°C to 85°C
IP67
D3 Embedded
DesignCore Velocity PRO
AR0234
1920 x 1080 @ 60fps
Bayer RGB Stream
71.4 dB
Global
No

65° - 180° (H)

-40°C to 85°C
IP67
Valeo
Pinhole 8MP
IMX728
8.3MP @ 30fps
Bayer RGGB Stream
>130 dB
Rolling
Yes

30°, or 70°, or 120° (H)

-40°C to 85°C
IP67 & IP69K

No matching cameras found
