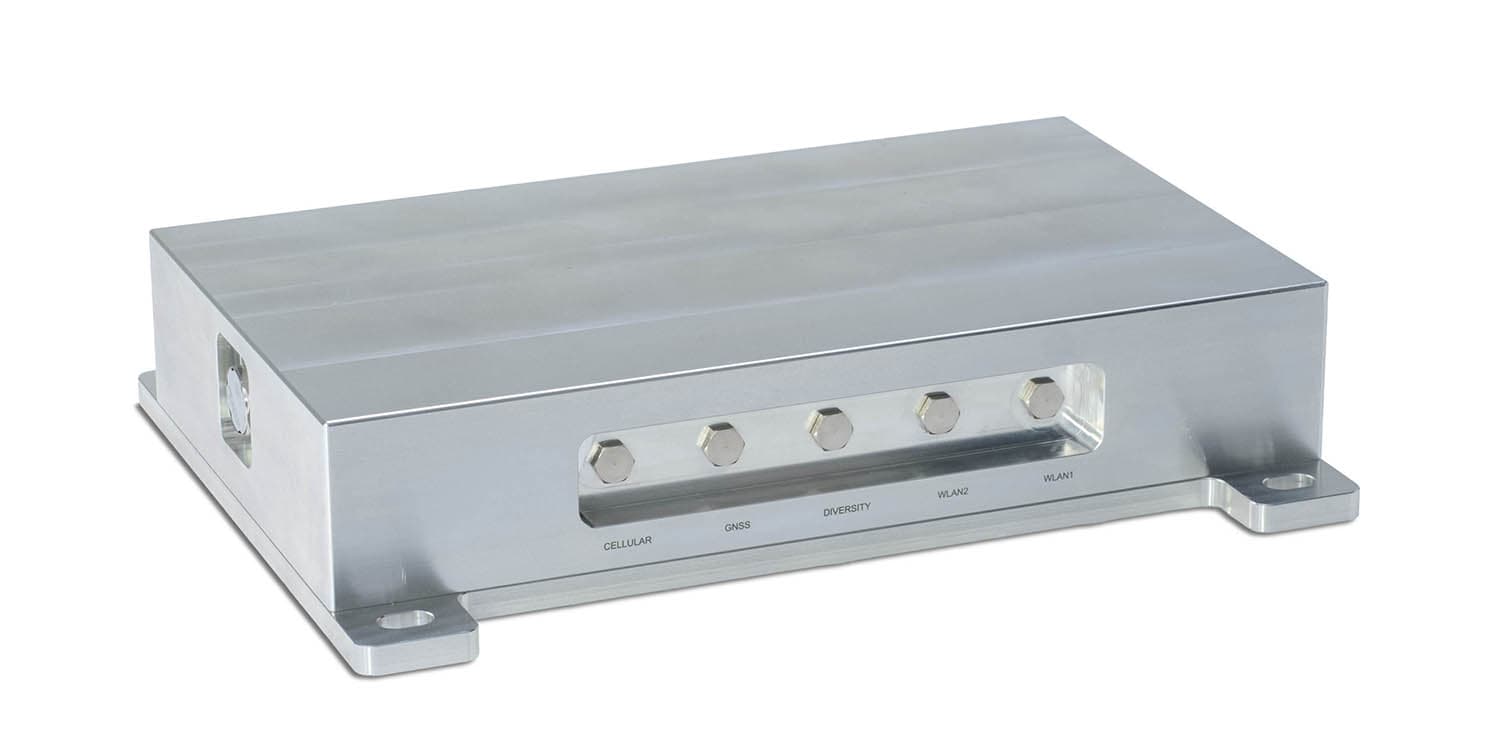

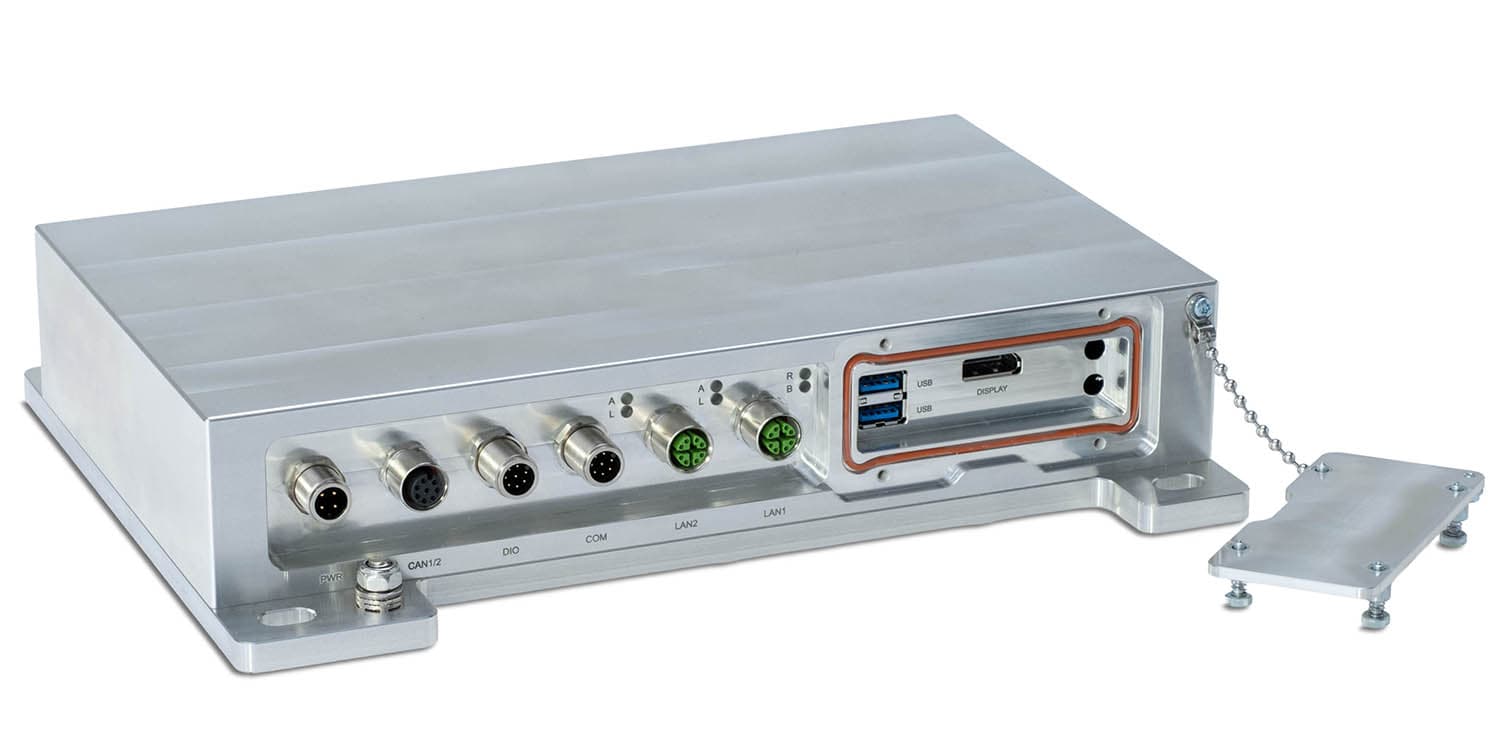

The Rugged Computer RPC RSL 83 is a powerful and highly reliable embedded PC designed for use in demanding and harsh environments. This compact box PC withstands shock, vibration, heat, dust, moisture, and splashing water, ensuring maximum reliability in the field.


Thanks to its durability, the Rugged Computer RPC RSL 83 is deployed worldwide in agricultural equipment, construction machinery, the energy sector, smart city applications, and railway systems. Its clever mechanical design features a robust aluminum housing (IP67/69) with a Goretex module. Every component – from the Intel® Atom Amston Lake processors to the M12 LAN connectors and industrial-grade flash memory – is engineered for long MTBF values (Mean Time Between Failures).
This makes the RPC 83 box PC one of the most rugged and reliable embedded systems on the market, offering long-term, fail-safe performance for mission-critical industrial applications.

Customize product

All products

Downloads

Documents

Datasheet

Product manual - coming soon

CE declaration of conformity - coming soon

Software

Compare Products

IPC/RSL83J33-A154E
IPC/RSL83J33-A154E
Processor
Intel® Atom™ x7433RE - Quadcore 1.5GHz
Intel® Atom™ x7433RE - Quadcore 1.5GHz
Memory / RAM
16 GB RAM
16 GB RAM
Storage
internal eMMC 64GB
1x CFast socket
1x micro SD socket
internal eMMC 64GB
1x CFast socket
1x micro SD socket
Display out
1x Displayport 1.4a (behind front cover)
1x Displayport 1.4a (behind front cover)
USB
2x USB 3.2 Type-A (behind front cover)
2x USB 3.2 Type-A (behind front cover)
Networking
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
CAN
2x CAN2.0A/ CAN2.0B with CAN FD Support
2x CAN2.0A/ CAN2.0B with CAN FD Support
Serial
1x RS232
1x RS232
Digital I/O
4 Inputs, 2 Outputs
4 Inputs, 2 Outputs
Wireless
5G Red Cap (4G Fallback) w/GNSS
Wi-Fi 6 ax/ac/a/b/g/n/ & Bluetooth

-
Expansion slots
1x M.2 3042 (Key B) > used for 5G RC
1x M.2 2230 (Key E) > used for Wi-Fi
1x Mini PCIe socket
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x Mini PCIe socket
Power Input
9-45V DC Power input
9-45V DC Power input
Protection class
IP67
IP69
IP67
IP69
Dimensions
w276 x h58 x d210mm
w276 x h58 x d210mm
Weight
3.5kg
3.5kg
Op. Temp. range
-40°C to +70°C
-40°C to +70°C
