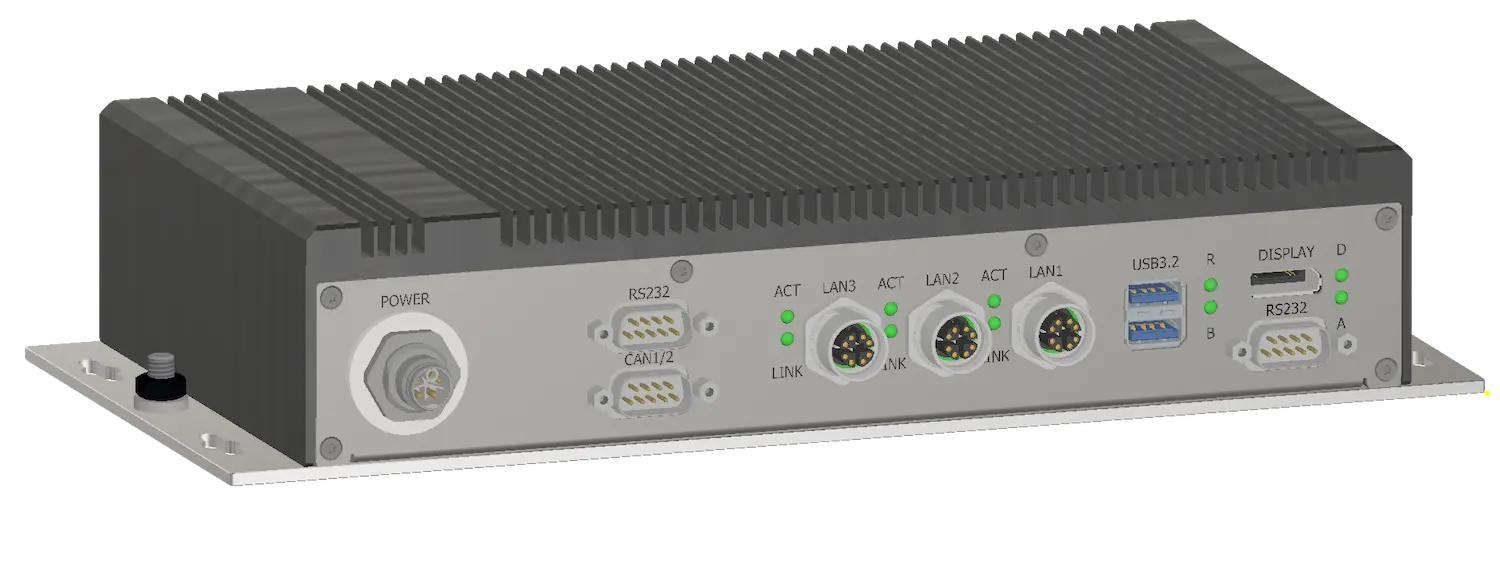

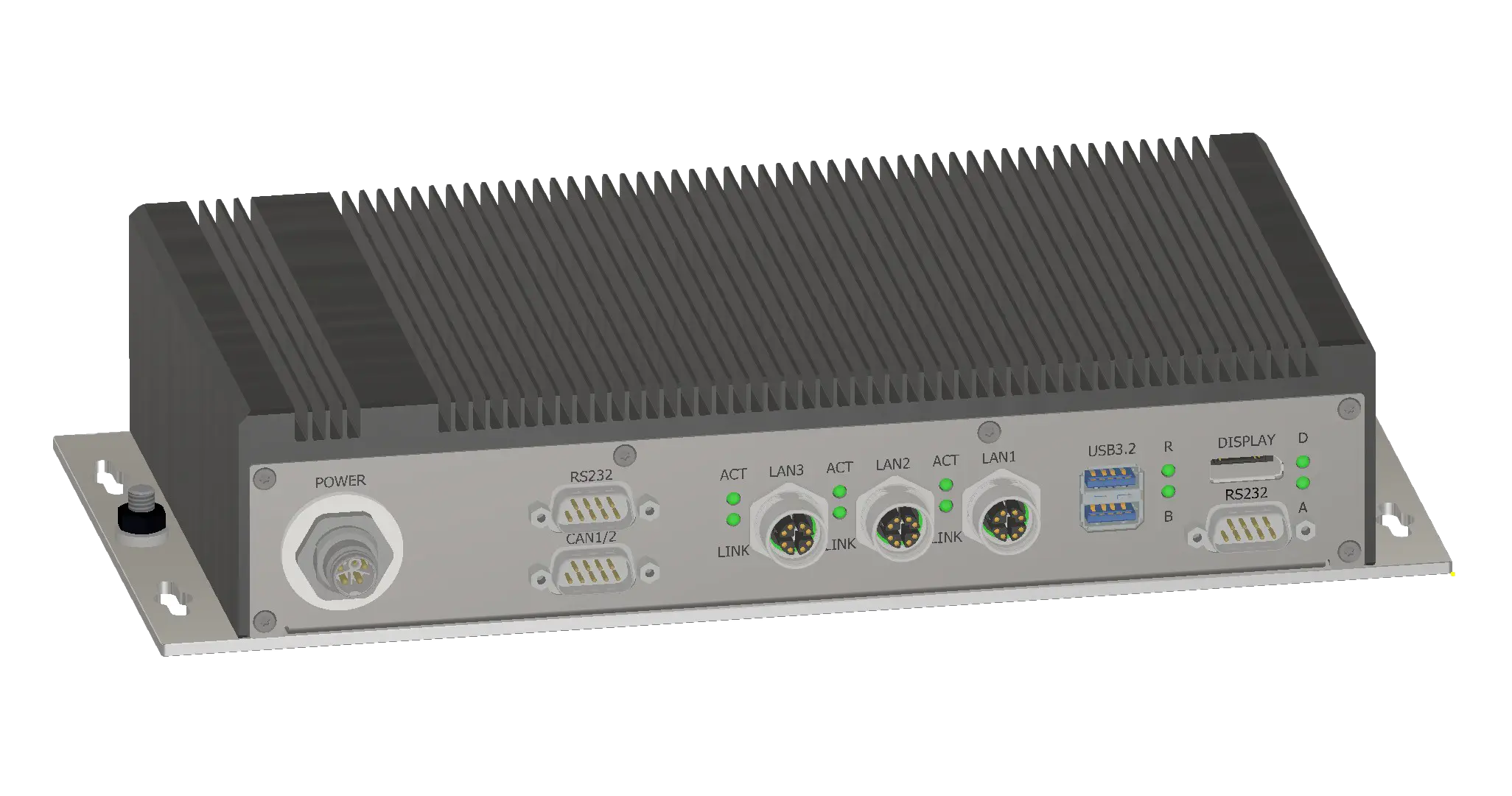

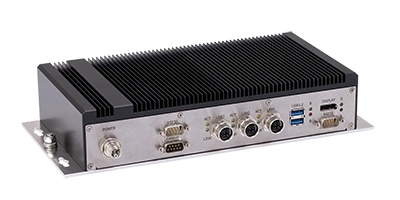

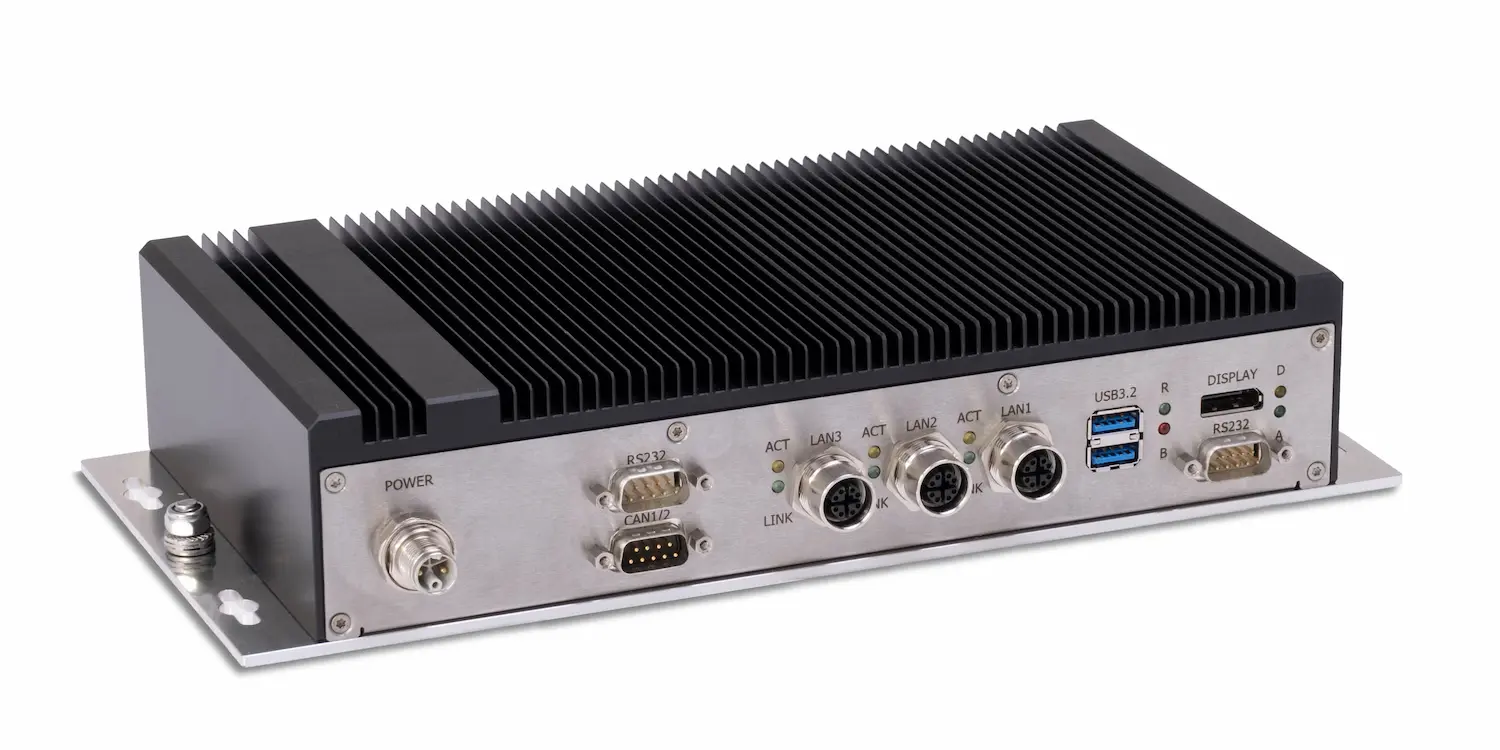

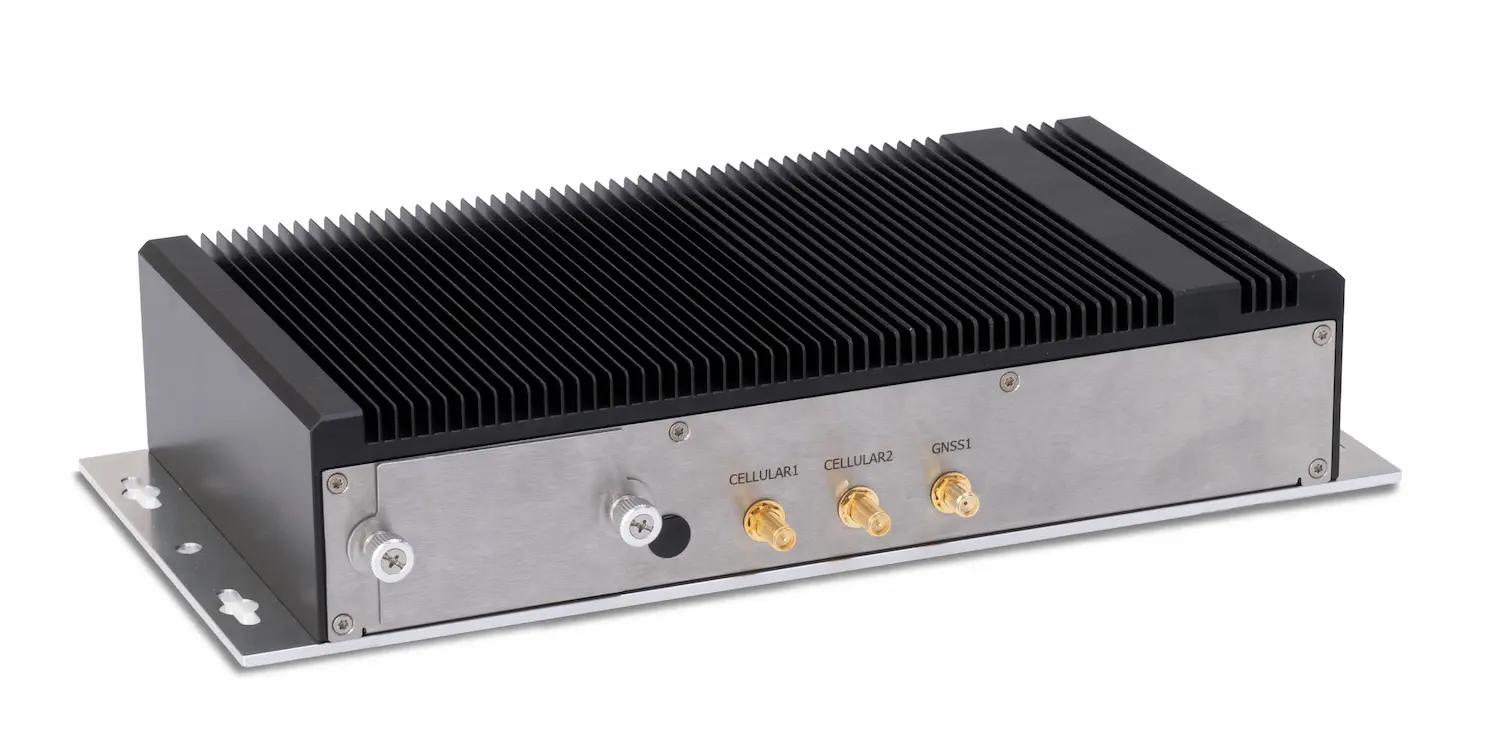

RSL-R 83

The Railway Computer RSL-R 83 is equipped with an Intel Atom (Amston Lake) x7000re processor. This enables the railway computer to achieve a balance between high computing power and low power consumption.

The Railway Computer RSL-R 83 complies with the EN50155, class OT4 and EN45545-2 standards. In addition, the robust box PC offers a minimum 10 millisecond power-failure bridging time in accordance with EN50155, Class S2, as well as full EN50155 compliance with regard to shock and vibration (EN61373), EMC (electromagnetic compatibility) and electrical insulation requirements.

It has an integrated galvanically isolated power supply with a DC input voltage range of 16.8V – 137.5V. This allows the railway computer to be directly connected to 24V, 36V and 110V systems.
