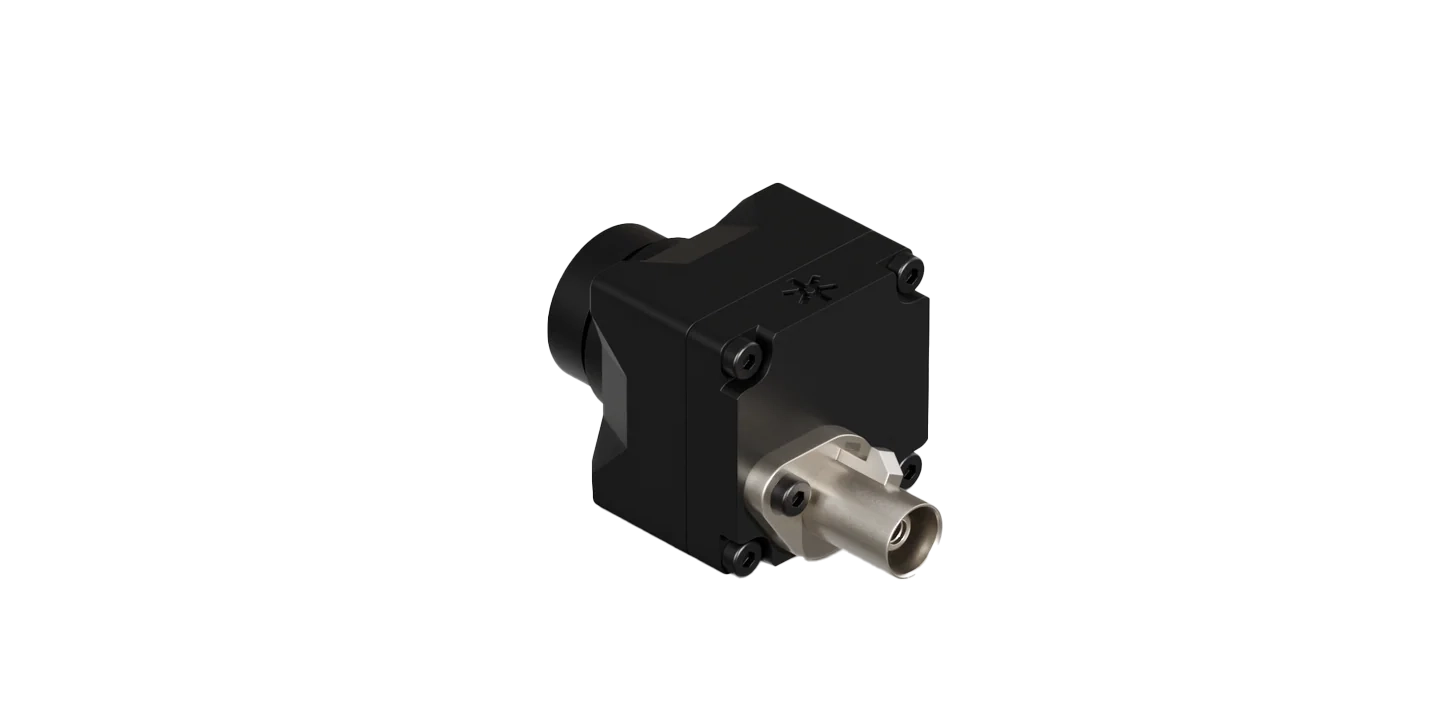

Stereolabs ZED X One S Monocular Camera

The ZED X One S global shutter captures every movement without sacrificing an ounce of dynamic range or overall image quality. No blurred or curved lines. Just perfect pixels in every scene.

• Onsemi AR0234
• 2.3MP
• 1920x1200 @60fps
• 16/10 sensor format
  ‍

Camera Features

‍

• Ultra-compact form factor
  A 35% smaller and lighter design fits tight robotic layouts and high-density sensor configurations, simplifying integration on arms, end-effectors, and humanoid platforms while expanding placement flexibility
  ‍
• Secure GMSL2 Connection
  GMSL2 connectivity is ideal for robotics. Transmit video without EMI and high data rate through a lockable interface to a Jetson Orin over a distance of up to 15M with low latency.
  ‍
• ‍Multi-camera synchronization
  ‍Hardware synchronization for multiple connected cameras at frame-level within 10 microseconds. Capture RGB and depth images of the same scene with multiple cameras all triggered at the same time.
  ‍
• High-performance global shutter
  The global shutter and Full-HD 60fps sensor capture fast motion with no distortion or blur, delivering sharp, reliable images for dynamic robotic tasks.
  ‍
• ‍High-performance IMU
  ‍The all-new IMU combines a 16-bit triaxial accelerometer and gyroscope with vibration resistance, ultra low noise and bias for exceptional motion tracking.
  ‍
• ‍Fisheye and IP69K options
  ‍Choose from versatile lens options, including a new fisheye lens for maximum field awareness and an IP69K-rated Wide lens that resists demanding industrial environments (IP69K with wide lens only).
